SPECIFICATIONS

AC Charging Input: > 3000W

Application: Solar Power Storage

Battery Core manufacturer: EVE

Brand Name: OSCAL

Bundle: Bundle 1

Certification: CE,FCC,RoHS,weee,UL

Connection: Bluetooth-Compatible

Display screen: Yes

High-concerned chemical: none

Model Number: PM6000+500W

Net Weight: 30kg - 50kg

Nominal Capacity: 3600mAhOrigin: Mainland China

Replacement Battery: No

Set Type: Charger Sets

Size: 59*35*44.1cm

Solar Charging Input: 2000W - 2500W

Type: LiFePO4



Specification:





Storage Temperature: -10 ℃ to 45 ℃ Gold (14 °F to 113 °F)



Chargy Temperature: 0 ℃ to 50 ℃ Gold (32 °F to 122 °F)

Discharging Temperature: -20 ℃ to 55 ℃ Gold (-4 °F to 131 °F)

Battery Type: LiFePO4 (Lithium Iron Phosphate)

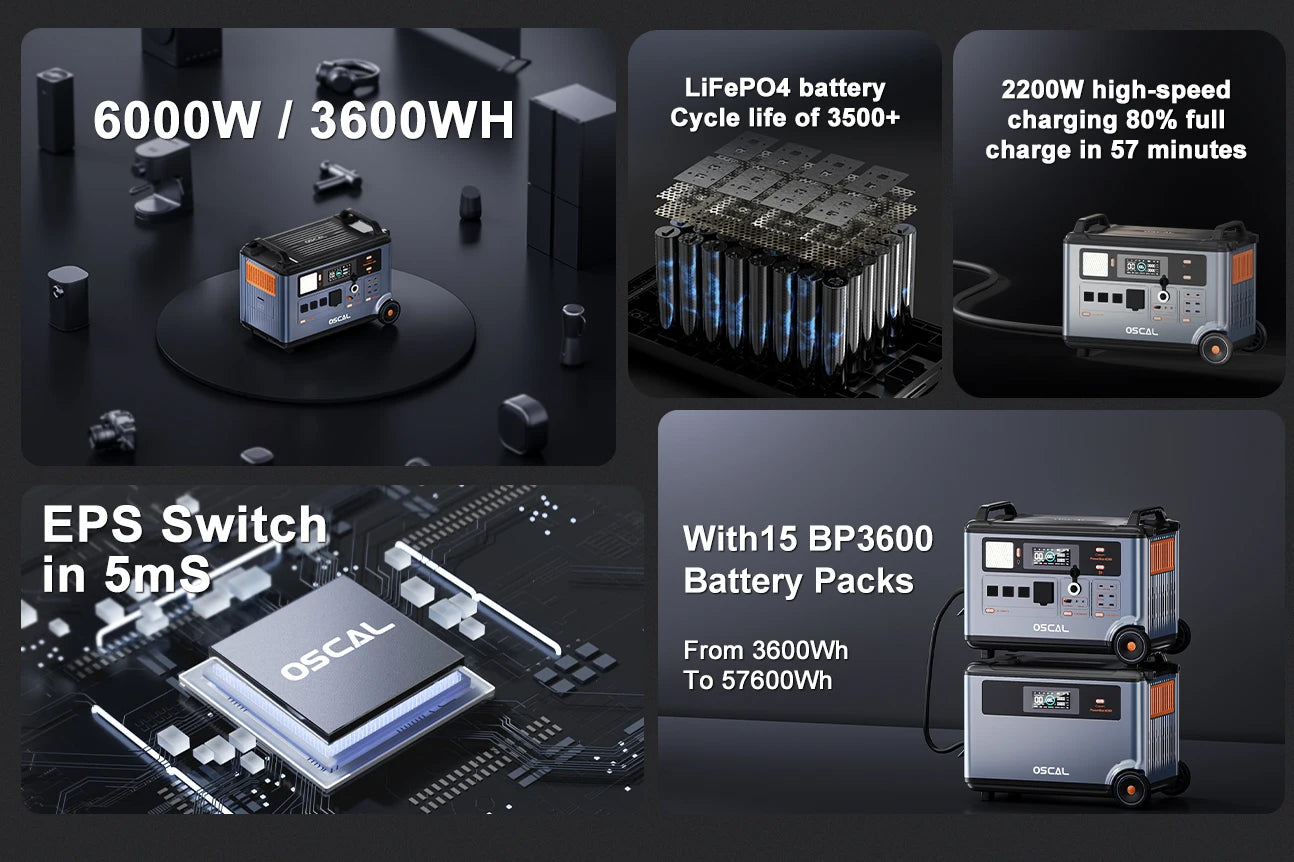

Battery capacity: 3,600Wh

Battery Pks: 3600WH

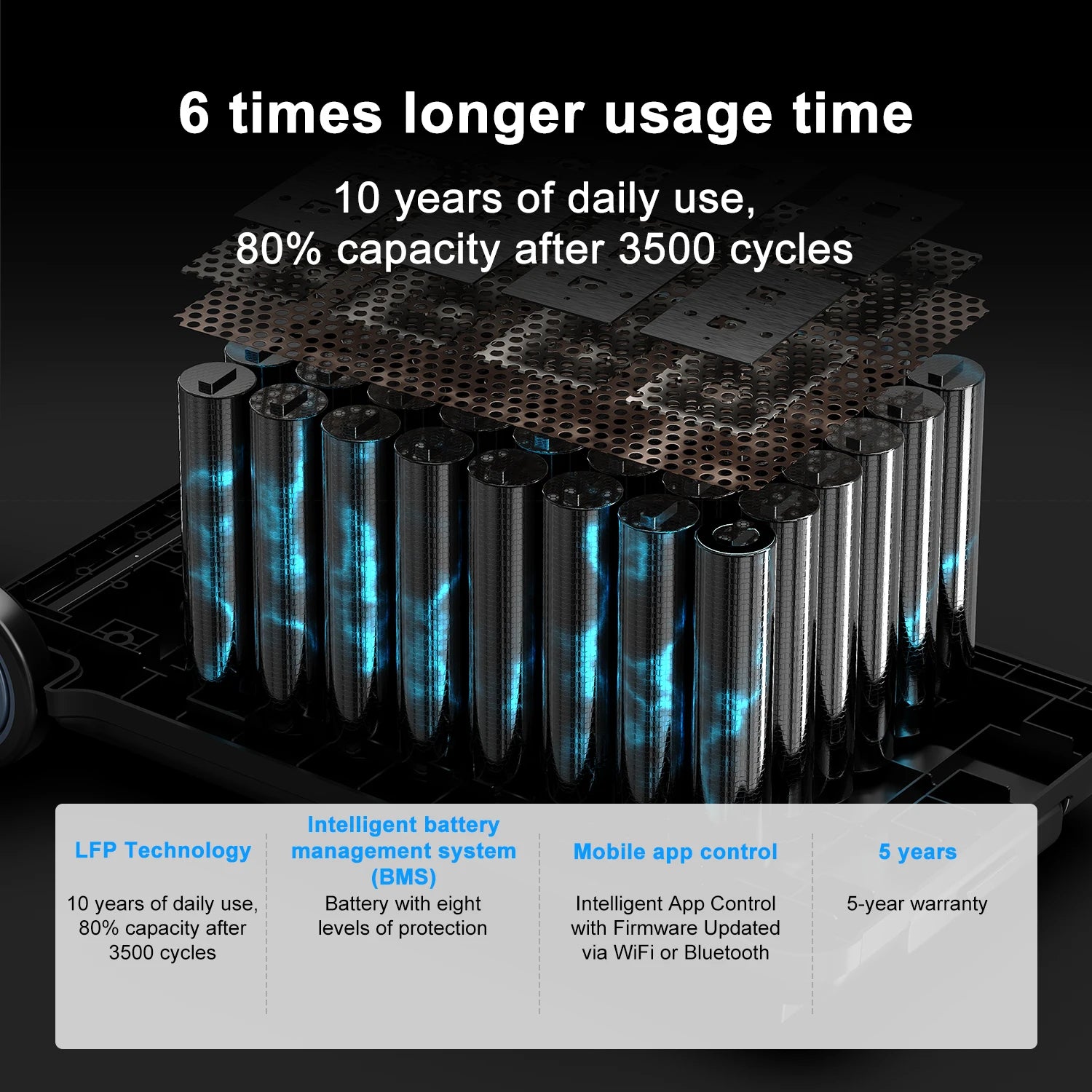

Lifecycle: 3500 + Cycles to 80% of Original capacity

Shelf-Life: Recharge to above 50% Every 3 Months

Management System: T1 Chip integrated with BMS

Monitoring: Load/Heating Monitoring,Charging Monitoring,Temperature Monitoring

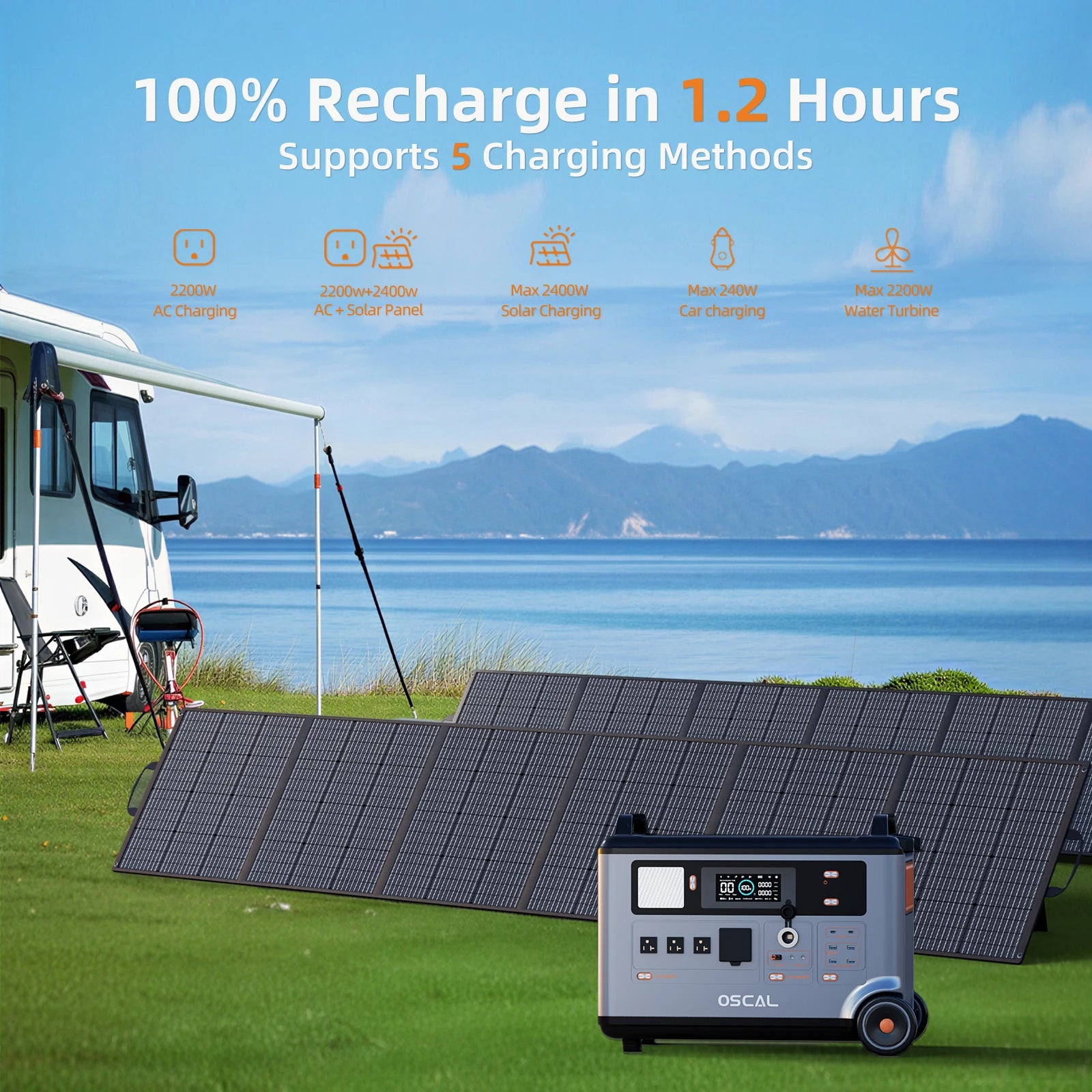

AC Enter: up 2200W

Solar Enter: up 2400W Max.

Car Input: up 240W from Cigarette Lighter Port

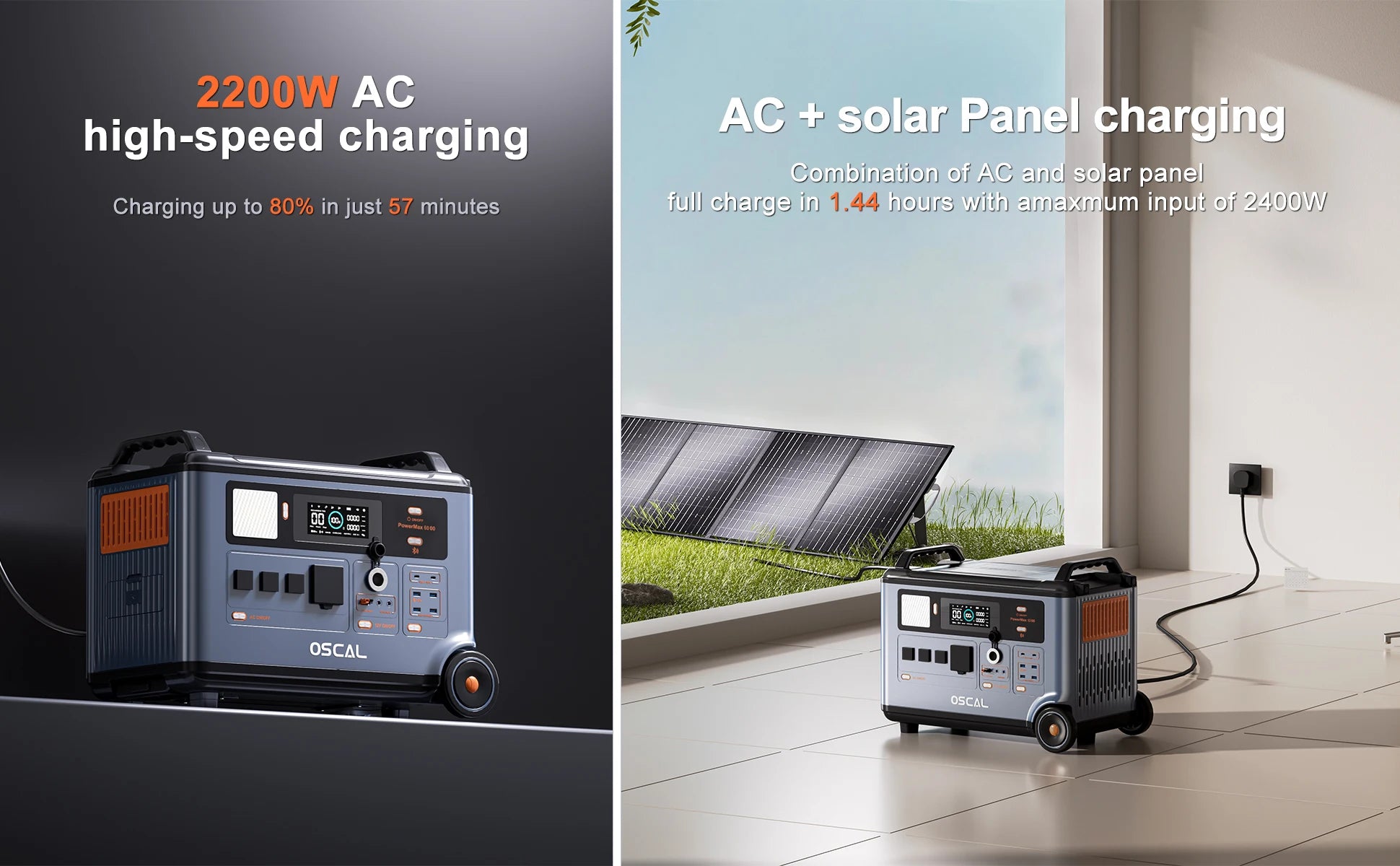

AC Charding Time: 1.96 hours

Solar Chargy Time: 1.5 hours (Prime Sunshade)

AC + Solar Chargy Time: Max 3000W Supported; 1.44 hours

Because Charding Time: 15 hours

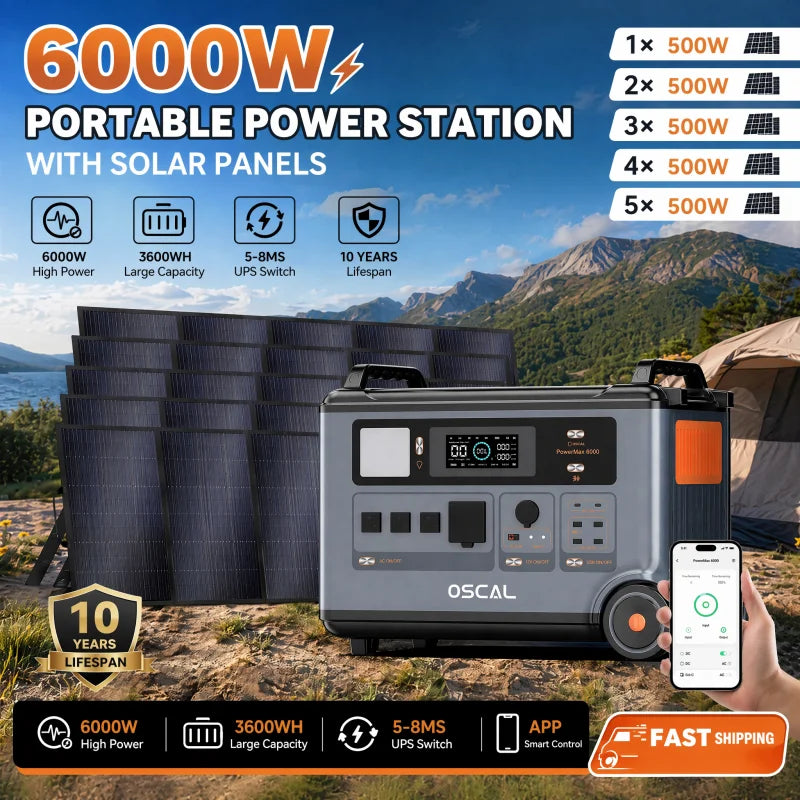

Total Output Power: 6,000W

Inverter Type: Pure Sine Wave

Surge Power: 9,000W

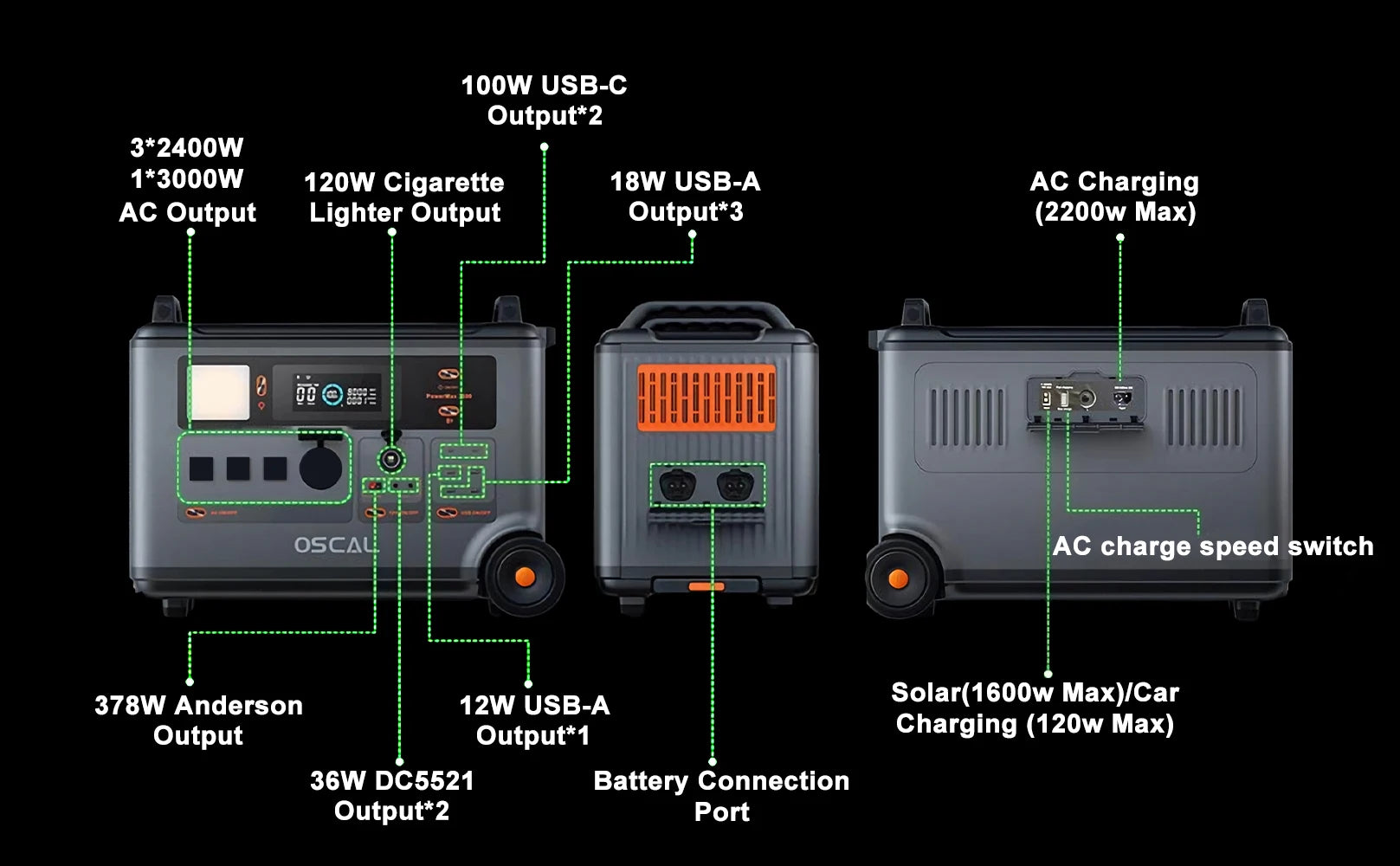

AC Outlets: 4 X AC Outlets (Total 6000W)

USB Ports:

2x PD 100W - USB Type-C

3x PD 18W - USB Type-A

1x PD 12W - USB Type-A

Cigarette Lighter Sockets: 1 x Cigarette Lighter - 120W (Car Outlet)

LED light: 5 level LED lamp

DC Outlets:

1x12V/25A (Anderson 378W Outlet)

2x12V/3A SC5521 (5.5mm Outlet)

Product Weight: 46kg

Package Weight: 51kg

Product Size(L X W X H): 59x35x44.1cm

Size package (L X W X H): 66x40.5x52.5cm

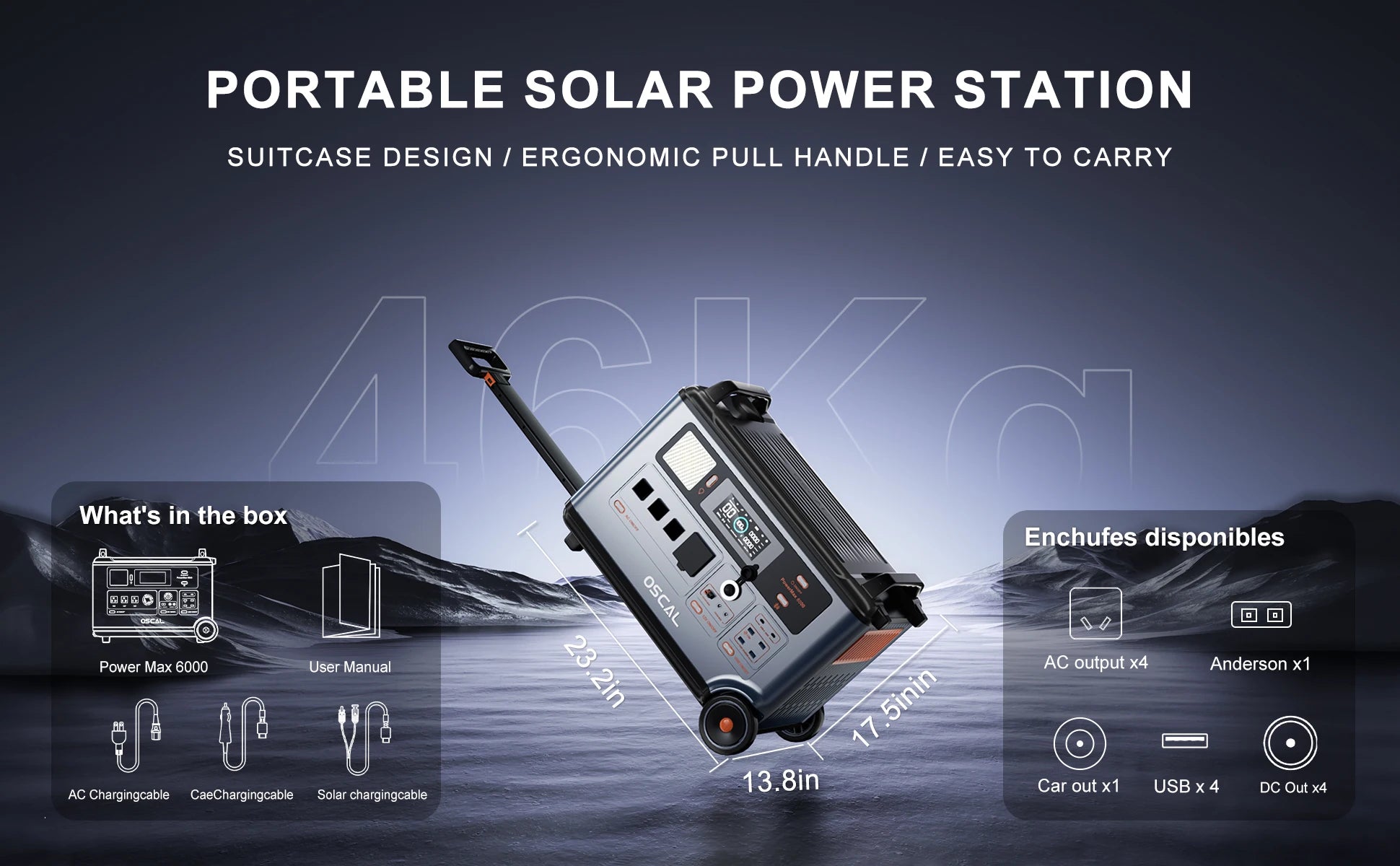

Package List:

PowerMax6000:

1 x Oscal PowerMax 6000

1 x AC Charge Cable

1 x Solar Charging Cable

1 x Car charging cable

1 x User Manual

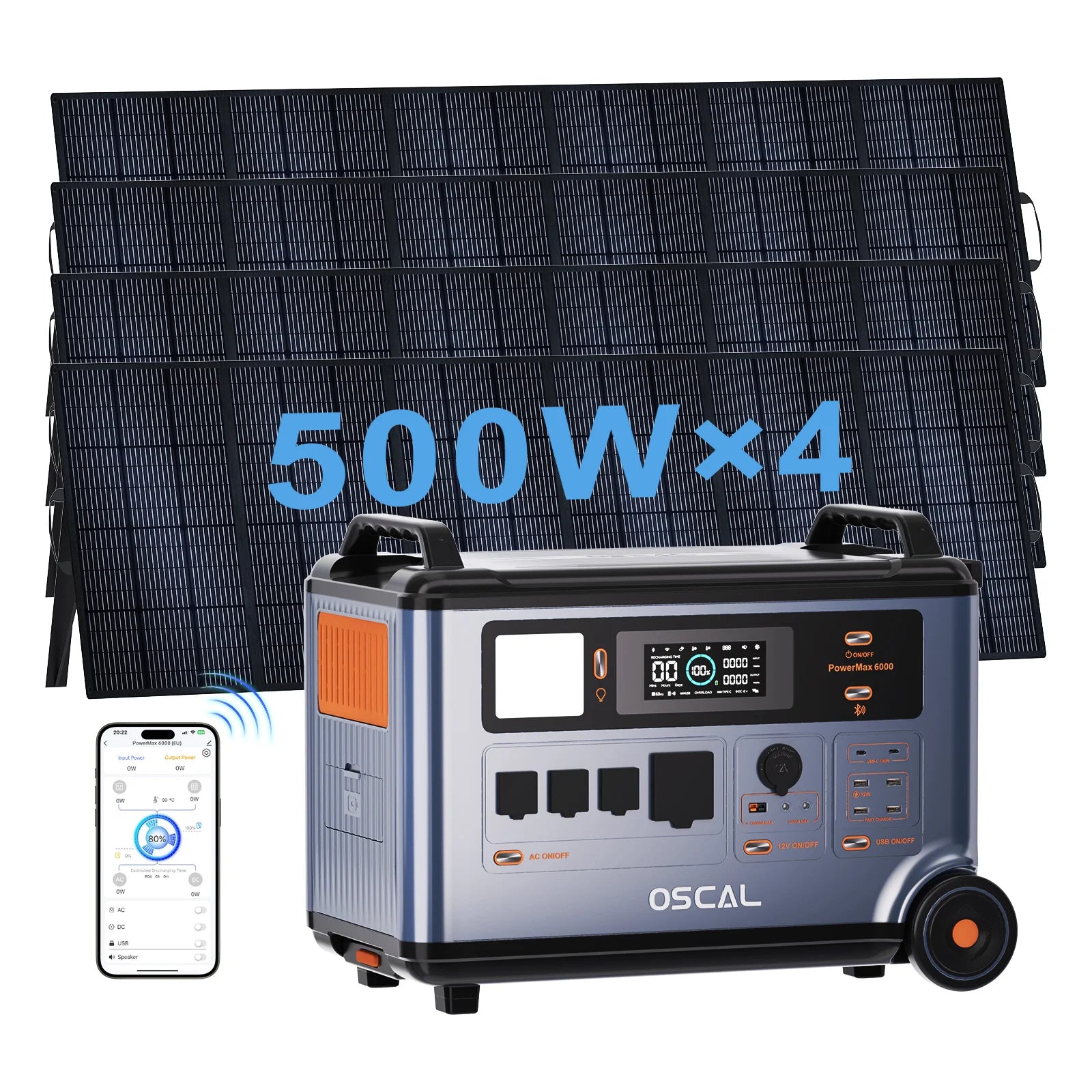

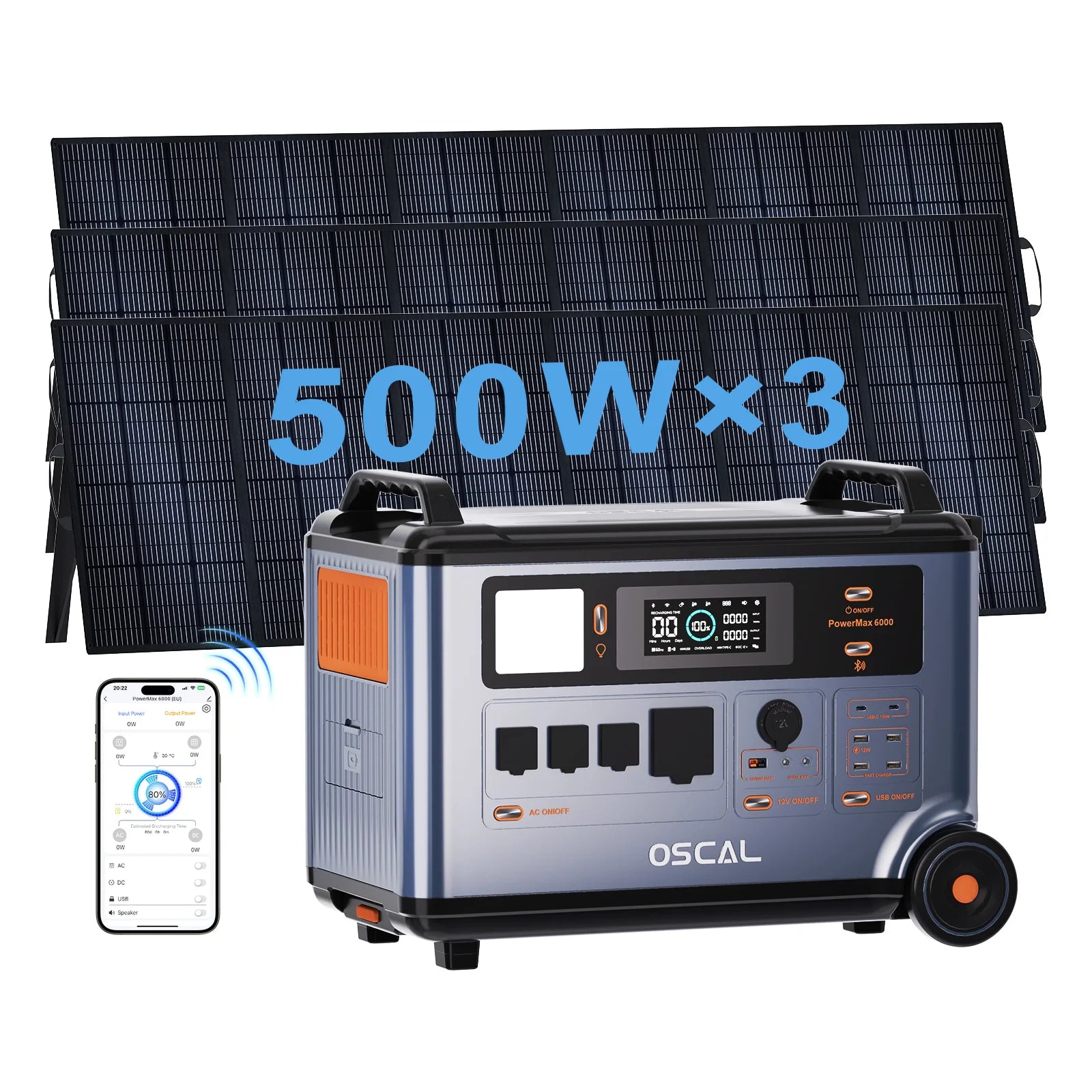

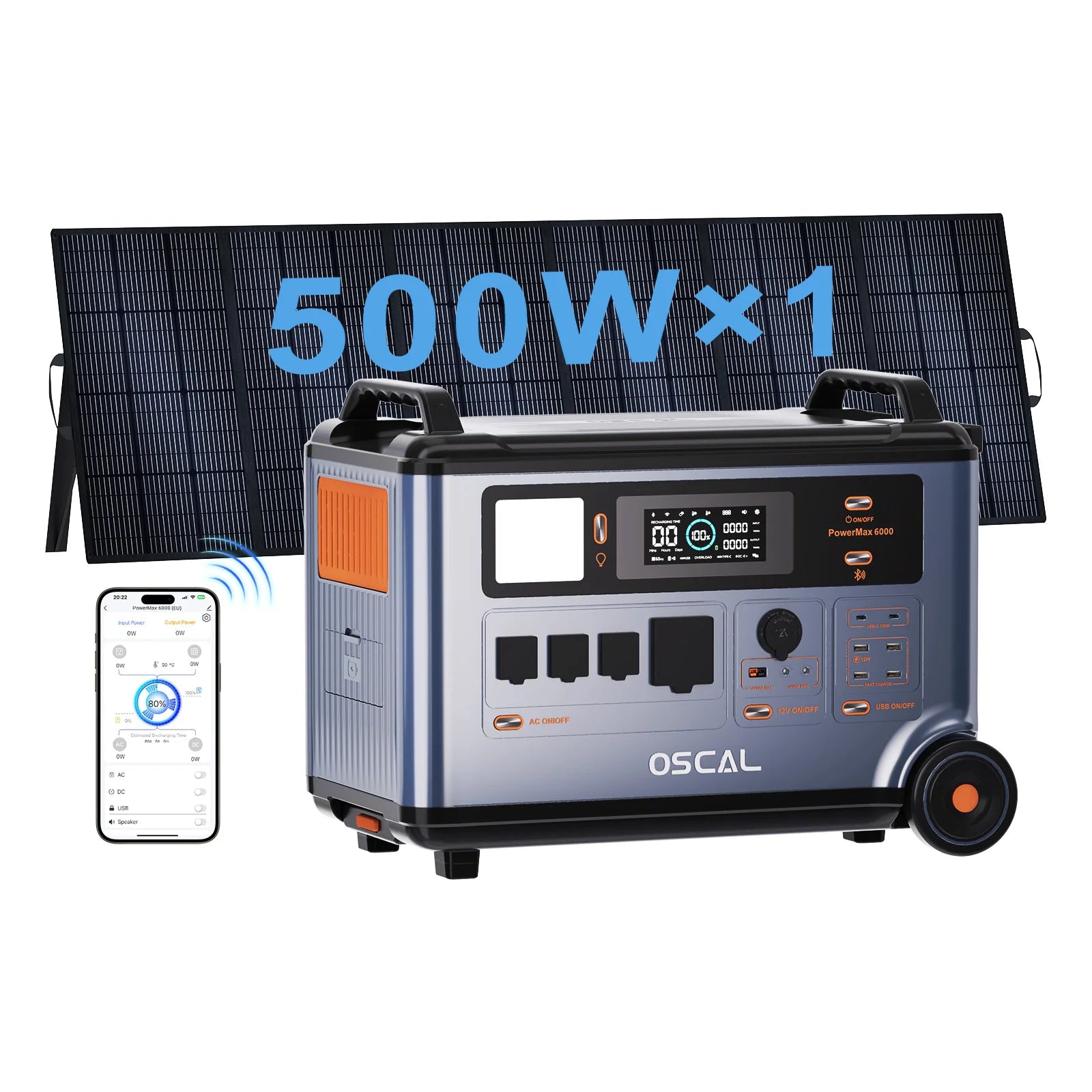

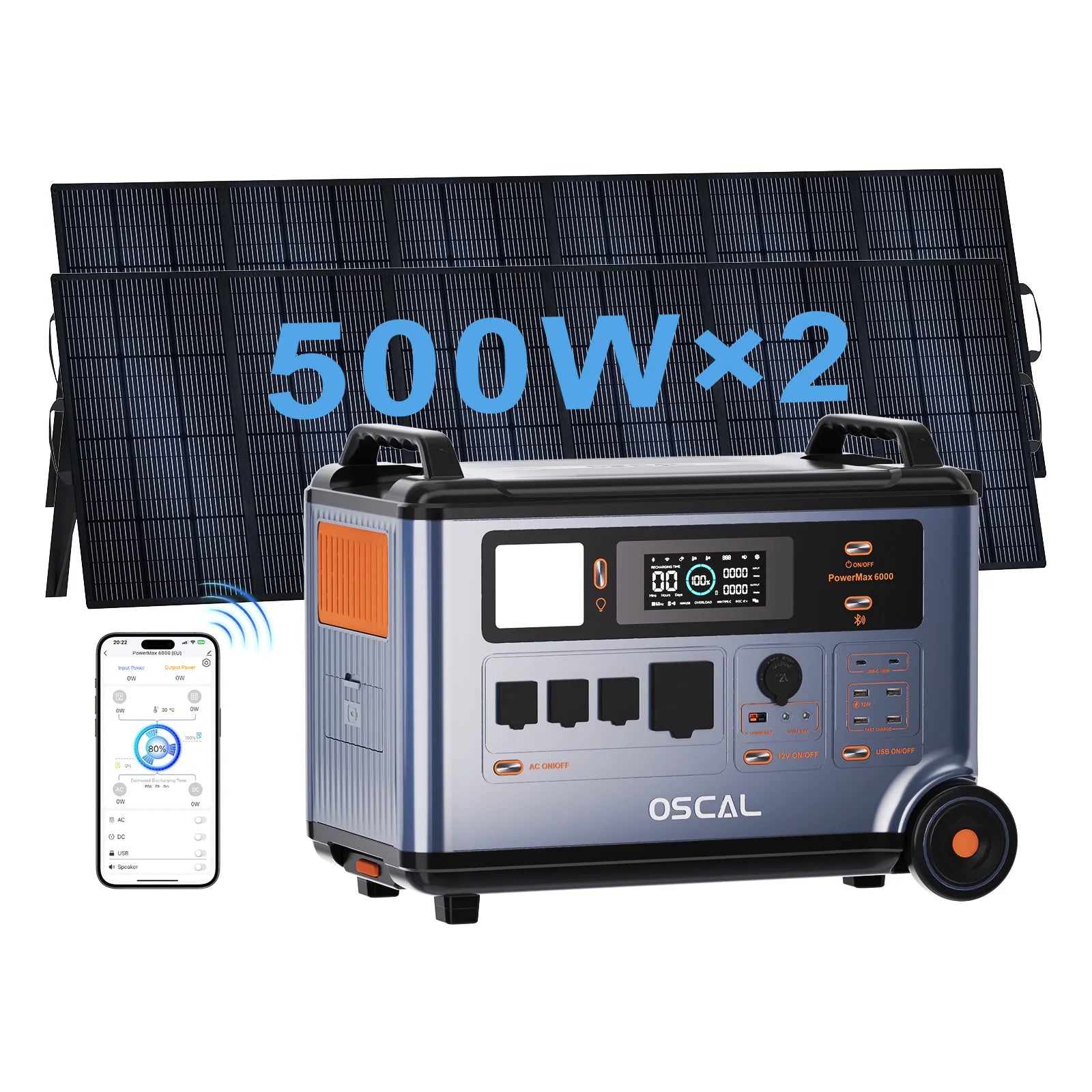

1/2/3/4pcs 500W solar panels (optional)
